Engine Oil Leak – 2007-2008 Toyota Tundra & 2008 Sequoia

“This site contains affiliate links for which OEMDTC may be compensated”

T-SB-0320-08

October 21, 2008



Engine Oil Leak



Applicability

YEAR(S) MODEL(S) ADDITIONAL INFORMATION
2008 Sequoia Engine(s): 3UR

VDS(s): BY64A, BY67A, BY68A, ZY64A, ZY67A, ZY68A

2007 – 2008 Tundra Engine(s): 3UR

VDS(s): BV541, BV581, CV541, DV541, DV581, EV541, EV581, JV521, KV521, LV521, MV521, RV541, RV581, SV541



TSB SUPERSESSION NOTICE

The information contained in this TSB supersedes TSB No. EG028-07.

  • Applicability has been updated to include 2008 model year Sequoia and Tundra vehicles.
  • Production Change Information has been updated.
  • Warranty Information has been updated.

TSB No. EG028-07 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this service bulletin before proceeding.



Introduction

Some 2007 – 2008 model year Tundra and 2008 model year Sequoia vehicles with a 5.7-liter engine may exhibit an oil leak from the oil pan area. This condition may be caused by a leaking O-ring on the dipstick tube. Use the following repair procedure to address the customer’s concern.



Production Change Information

MODEL PLANT DRIVETRAIN WHEELBASE PRODUCTION CHANGE EFFECTIVE VIN
Tundra TMMTX 2WD 3220 mm (126.8 in.) 5TF*V5#1*8X003079
3700 mm (145.7 in.) 5TF*V5#1*8X064968
4180 mm (164.6 in.) 5TF*V5#1*8X006070
4WD 3220 mm (126.8 in.) 5TF*V5#1*8X003146
3700 mm (145.7 in.) 5TF*V5#1*8X071902
4180 mm (164.6 in.) 5TF*V5#1*8X008101
TMMI 2WD 3700 mm (145.7 in.) 5TB*V5#1*8S480950
4WD 3700 mm (145.7 in.) 5TB*V5#1*8S514870
Sequoia TMMI 2WD N/A 5TD*Y6#A*8S013076
4WD 5TD*Y6#A*8S019342



Warranty Information

OP CODE DESCRIPTION MODEL TIME OFP T1 T2

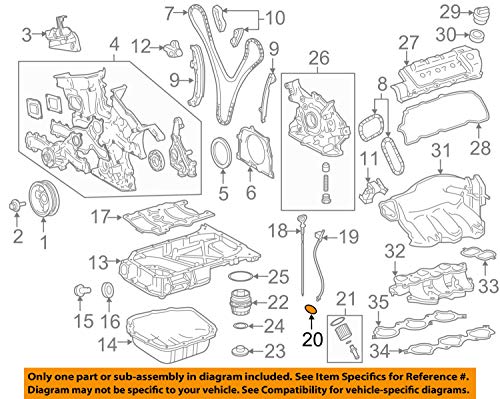

111411 R & R Dipstick Tube O-ring Sequoia 0.2 96721-19010 Engine Oil Leak - 2007-2008 Toyota Tundra & 2008 Sequoia | small light 65 99
Tundra 0.1



APPLICABLE WARRANTY

  • This repair is covered under the Toyota Powertrain Warranty. This warranty is in effect for 60 months or 60,000 miles, whichever occurs first, from the vehicle’s in-service date.
  • Warranty application is limited to correction of a problem based upon a customer’s specific complaint.



Parts Information

PREVIOUS NUMBER CURRENT PART NUMBER PART NAME QTY
96721-19010 Engine Oil Leak - 2007-2008 Toyota Tundra & 2008 Sequoia | small light Same O-ring 1



Required Tools & Equipment

TOOLS & MATERIAL QUANTITY
ILSAC GF-4 Multi-grade SAE 5W-20 or 0W-20 As Needed
