M.I.L. “ON” DTC P0172 & P0175 – 2008-2009 Lexus IS250

L-SB-0032-09
March 26, 2009



M.I.L. “ON” DTC P0172 & P0175

Service Category	Engine/Hybrid System
Section	Engine Control	Market	USA



Applicability

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2008 – 2009	IS250	Drive Type(s): 2WD, 4WD Engine(s): 4GR Transmission(s): 6MT, 6AT VDS(s): BK262, CK262



Introduction

Under certain driving conditions, some 2008 – 2009 model year IS250 vehicles with 4GR-FSE engines may exhibit a M.I.L. “ON” condition with one or both of the following Diagnostic Trouble Codes (DTCs):

• P0172 (System Too Rich [Bank 1])
• P0175 (System Too Rich [Bank 2])

The Engine Control Module (ECM) (SAE term: Powertrain Control Module/PCM) logic has been modified to reduce the possibility of this condition occurring. Refer to the following repair procedure to address customer concerns.



Warranty Information

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
EG9005	Recalibrate ECM (PCM) Engine and Change Engine Oil & Oil Filter	1.0	89661-#####	8A	99



APPLICABLE WARRANTY This repair is covered under the Lexus Federal Emissions Warranty. This warranty is in effect for 96 months or 80,000 miles, whichever occurs first, from the vehicles in-service date. Warranty application is limited to correction of a problem based upon a customer’s specific complaint.



Parts Information

MODEL YEAR	DRIVETRAIN	TRANS	PREVIOUS PART NUMBER	CURRENT PART NUMBER	PART NAME	QTY

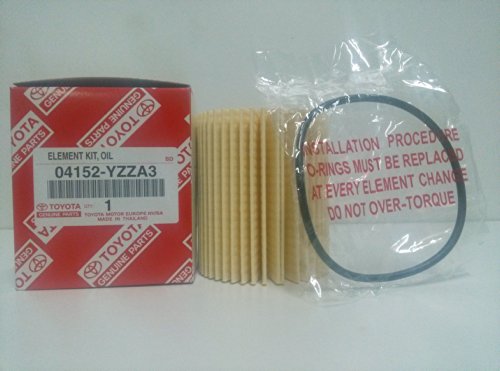

2008/ 2009	2WD	–	04152-YZZA3	Same	Element Kit, Oil Filter	1
	AWD	–	04152-YZZA2	04152-YZZA5		1
–	–	–	N/A	00451-00001-LBL	Authorized Modifications Label	1
	2WD	M/T	89661-53B00	89661-53B01		–
2008		A/T	89661-53B10	89661-53B11	Computer, Engine Control (ECM/PCM)	–
	AWD		89661-53B20	89661-53B21		–
2009	2WD	M/T	89661-53C40	89661-53C41		–
		A/T	89661-53C50	89661-53C51		–
	AWD		89661-53C60	89661-53C61		–



NOTE The ECM (PCM) should NOT be replaced as part of the repair procedure. Authorized Modification Labels may be ordered in packages of 25 from the Materials Distribution Center (MDC) through Dealer Daily – Dealer Support Materials Orders.



Calibration Identification Chart

MODEL YEAR	DRIVETRAIN	TRANS	ECM (CPU)	PREVIOUS CALIBRATION ID	NEW CALIBRATION ID	VDS
		M/T	Main	35365000	35365100
2008	2WD	A/T		35366000	35366100	BK262
			Sub	55351000	55351100
	AWD	A/T	Main	35367000	35367100	CK262
			Sub	55352000	55352100
2009	2WD	M/T	Main	35379000	35379100	BK262
		A/T		35380000	35380100
	AWD			35381000	35381100	CK262



Required Tools & Equipment

SPECIAL SERVICE TOOLS (SST’S)	PART NUMBER	QTY
GR8 Battery Diagnostic Station*	00002-MCGR8	1



* Essential SST.

NOTE Additional SSTs may be ordered by calling 1-800-933-8335. The GR8 Battery Diagnostic Station (P/N 00002-MCGR8) supersedes the Automatic Trickle Charger (P/N 00002-YA122-01) and Fast Battery Chargers (Associated P/N ASE6003 and Christie P/N CAPPDQ). P/N 00002-YA122-01, ASE6003, and CAPPDQ are now obsolete.



REQUIRED EQUIPMENT	SUPPLIER	PART NUMBER	QTY
TIS Techstream* NOTE: Software version 4.00.017 or later is required.	ADE	TSUNT	1



* Essential SST.

NOTE •    Additional TIS Techstream units may be ordered by calling Approved Dealer Equipment (ADE) at 1-800-368-6787. •    The Diagnostic Tester is NOT recommended for flash reprogramming with this calibration file. Please use TIS Techstream or an approved J2534 interface to perform this update. Visit techinfo.toyota.com for more information regarding J2534 reprogramming.



REQUIRED MATERIAL	CLASSIFICATION	DRIVETRAIN	QUANTITY
Engine Oil	ILSAC GF-4 Multi-grade SAE 5W-30	2WD	6.2 U.S. quarts (5.9 liters)
		AWD	6.3 U.S. quarts (6.0 liters)



Repair Procedure

1. Check for the Authorized Modifications Label affixed to the vehicle in the location shown in Figure 1. Confirm if the ECM (PCM) calibration has been updated. If the calibration ID listed is NOT the latest ECM (PCM) calibration — go to step 2.

Figure 1. Location of Authorized Modifications Label on 2008 IS 250

1	Replacement ECM (PCM) Part Number (i.e., 89661-53B01)	4	Date Completed
2	New Calibration ID(s) (i.e., 35365100)	5	This TSIB Number
3	Dealer Code



2. Flash Reprogram the ECM (PCM).

NOTE The GR8 Battery Diagnostic Station MUST be used in Power Supply Mode to maintain battery voltage at 13.5 volts while flash reprogramming the vehicle. For details on how to use the GR8 Battery Diagnostic Station, refer to the GR8 Instruction Manual located on the Technical Information System (TIS), Diagnostics – Battery.



Follow the procedures outlined in TSIB No. SS002-07, “Techstream ECU Flash Reprogramming Procedure”, and flash the ECM (PCM) with the NEW calibration file update.

3. Install the Authorized Modifications Label.
   1. Using a permanent marker, enter the following information on the label:
      • ECM part number [Refer to the Parts Information section for the CURRENT PART NUMBER]
      • Calibration ID(s) [Refer to the Calibration Identification Chart for the NEW CALIBRATION ID]
      • Dealer Code
      • Repair Date
      • Change Authority [This TSIB number]
   2. Affix the Authorized Modifications Label to the vehicle at the location shown in Figure 1. The Authorized Modifications Label is available through the MDC, P/N 00451-00001-LBL.
4. Change the engine oil and filter.

Refer to TIS, applicable model year IS 250 Repair Manual:

• 2008 IS 250: Engine/Hybrid System – Lubrication – “4GR–FSE Lubrication: Oil and Oil Filter (for 4WD) / (for 2WD): Replacement”
• 2009 IS 250: Engine/Hybrid System – Lubrication – “4GR–FSE Lubrication: Oil and Oil Filter (for 4WD) / (for 2WD): Replacement”

5. Test drive the vehicle to confirm proper vehicle operation.





---

J2534 Reprogramming

Approved J2534 Devices only provide reprogramming capabilities and do not support diagnostic scantool functions. For full diagnostic capabilities, please consider TIS Techstream or Techstream Lite

Toyota, Scion, and Lexus ECMs can be reprogrammed with the TIS Techstream, Techstream Lite, Diagnostic Tester, or can also be reprogrammed using a Toyota validated J2534 interface. Vehicle recalibration requires the use of the following:

• Toyota validated J2534 interface
• TIS Professional Level Subscription
• Toyota Calibration Update Wizard software (installed along with Techstream Software)
• Personal Computer running Microsoft Windows XP/2000 or later operating system

Toyota strongly recommends USING ONLY VALIDATED INTERFACE DEVICES that appear on this list.

Toyota works closely with J2534 interface manufacturers to ensure that their hardware works safely and efficiently with our products. Every device listed on this page has been thoroughly tested and validated on Toyota, Scion, and Lexus vehicles.

It is important to understand that only the specific devices, firmware, DLLs and APIs listed here have been tested by Toyota. We do not recommend use of any other J2534 device, firmware, DLL or API that is not listed here. Changes to J2534 hardware/software is outside of Toyota’s control; in some cases, changes made to device hardware/software can negatively impact reprogramming performance. Toyota makes every effort to continue to work with J2534 interface manufacturers to ensure continued product compatibility as our respective products evolve.



J2534 Approved Device Application Chart

Supplier	Device Name	Version			CUW Version	Supported OS
		Firmware*	DLL*	API*
Bosch Diagnostics	Flasher LT-Import	01.02.07	01.02.07	04.04	8.8	B, C, D, E
Bosch Diagnostics	Flasher PRO	01.09.18	01.09.18	04.04	8.8	B, C, D, E
Bosch Diagnostics	Mastertech VCI	13.0.75.27	2.0.75.27	04.04	Testing in Progress	B, C, D, E
Dearborn Group	VSI-2534	1.112	2.05.22	04.04	8.10	C, D
Drew Technologies	CarDAQ Plus	01.09.18	01.09.18	04.04	8.8	B, C, D, E
Drew Technologies	Mongoose MFC	01.02.07	01.02.07	04.04	8.8	B, C, D, E
Drew Technologies	Mongoose PRO	1.1.12.0	1.1.12.0	04.04	8.16	A, B, C, D
Snap-On	Pass Thru Pro II	01.09.18	01.09.18	04.04	8.8	B, C, D, E



*Original validated firmware/DLL versions may be superceded by the device manufacturer. Contact the device manufacturer if you are unable to find the versions listed above.



Supported Operating Systems

A	Windows 8 (32-bit; 64-bit)
B	Windows 7 (32-bit; 64-bit)
C	Windows VISTA Home Basic, Home Premium, Business, Ultimate
D	Windows XP Pro SP1 or later
E	Windows 2000 SP2 or later



For more information about the J2534 devices listed above, click on the vendor names. To report compatibility problems with listed hardware/software, please contact the device manufacturer.



Obtaining Calibration Files

The Flash Reprogramming Calibration CD is no longer available.

ECU Calibrations are now available for download directly from TIS. A valid TIS Professional Level subscription is required to access Calibration files. These files are compatible with the above mentioned scantools and J2534 interfaces. The Calibration page, located on the Diagnostics tab in the TIS site, contains all the most current vehicle calibration files, applicable Service Bulletins, and instructions for use. Select the following link for step by step instructions to access this page.

Note: Calibration Update Software is now included in the Techstream Software Installer. A valid TIS Professional Level subscription is required to download and install Techstream Software.



https://techinfo.toyota.com
