Extended Engine Crank – 2004 Toyota Tacoma & Tundra

EG052-04



EXTENDED ENGINE CRANK



Models:

’04 Tacoma & Tundra



Introduction

Some 2004 model year Tacoma and Tundra vehicles may experience an “Extended Engine Crank” condition after the engine is turned OFF and then is attempted to be restarted. An improved Fuel Suction Tube Sub–assembly has been developed to correct this condition.



Applicable Vehicles

• 2004 model year Tacoma vehicles equipped with 2RZ-FE, 3RZ-FE and 5VZ-FE engine.
• 2004 model year Tundra vehicles equipped with 5VZ-FE and 2UZ-FE engine.



Required SSTs

SPECIAL SERVICE TOOLS (SSTs)	PART NUMBER	QUANTITY
Toyota Diagnostic Tester Kit*	01001271	1
12 Megabyte Diagnostic Tester Program Card with version 12.01a Software (or later)*	01002593-005	1



*Essential SSTs.



NOTE:
Additional Diagnostic Tester Kits, Program Cards or other SSTs may be ordered by
calling SPX/OTC at 1-800-933-8335.



Warranty Information

OP CODE	DESCRIPTION	MODEL	ENGINE	TIME	OFP	T1	T2
EG4019	R & R Fuel Suction Tube Sub–assembly	Tacoma	2RZ–FE	0.7	77203-04060	07	99
			3RZ–FE		77203-04070
		Tundra	5VZ–FE	0 7	77203-0C050
			2UZ–FE



Applicable Warranty*:
This repair is covered under the Toyota Federal Emissions Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle’s in-service date.

* Warranty application is limited to correction of a problem based upon a customer’s specific complaint.



Parts Information

MODEL	ENGINE	PREVIOUS PART NUMBER	CURRENT PART NUMBER	PART NAME	QTY
Tacoma	2RZ–FE	77203-04060	Same	Tube Sub–assembly, Fuel Suction	1

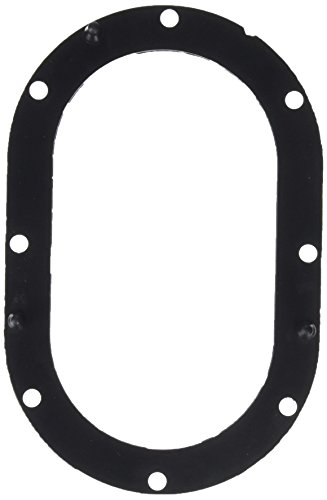

		77169-04010	Same	Gasket, Fuel Pump	1
	3RZ–FE	77203-04060	Same	Tube Sub–assembly, Fuel Suction	1
		77169-04010	Same	Gasket, Fuel Pump	1
	5VZ–FE	77203-04070	Same	Tube Sub–assembly, Fuel Suction	1
		77169-04010	Same	Gasket, Fuel Pump	1
Tundra	5VZ–FE	77203-0C050	Same	Tube Sub–assembly, Fuel Suction	1
